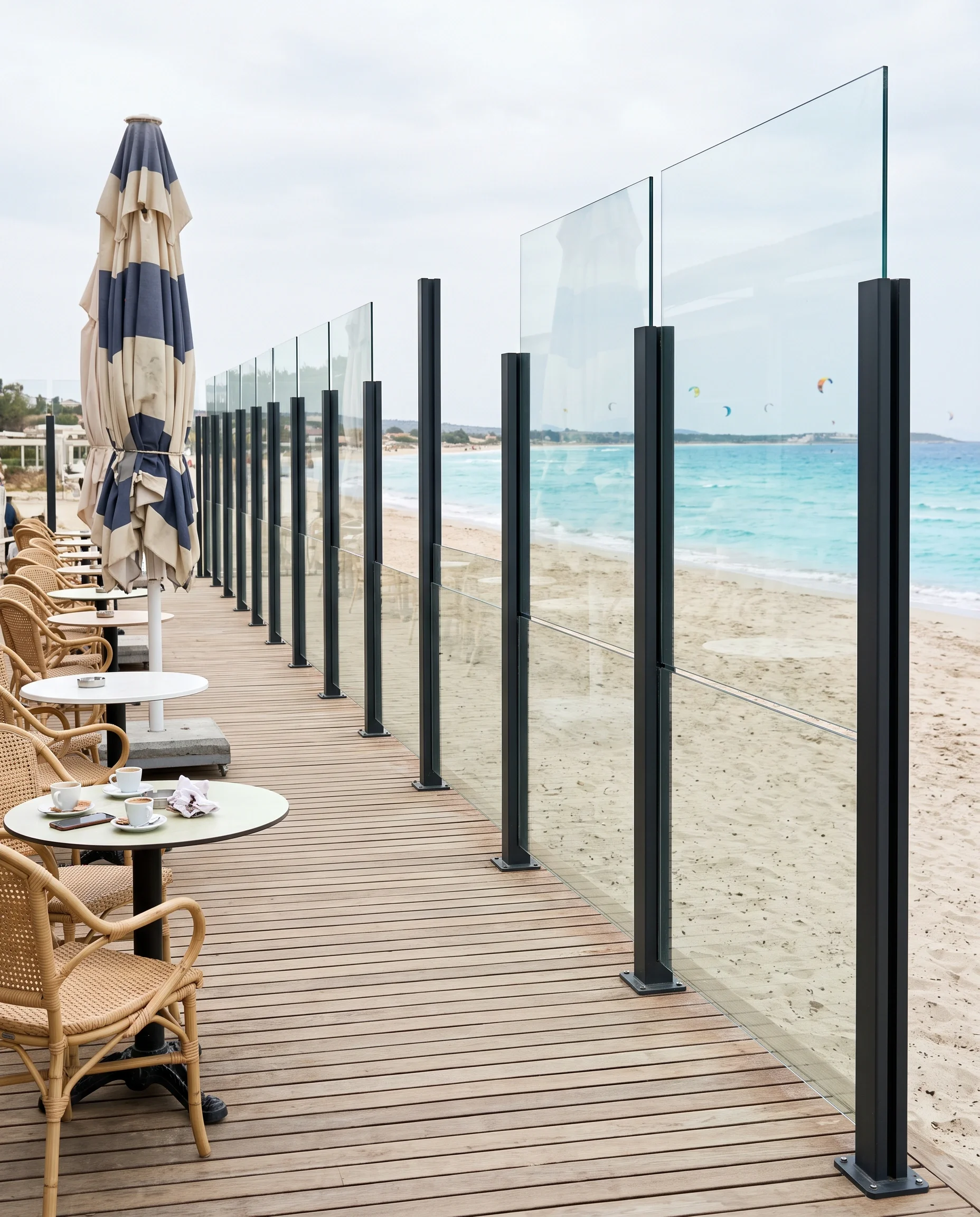

Glass Windbreak

Cuts the wind in outdoor seating areas while the glass keeps the view open.

How it works

Each unit has two vertical posts and glass panels. The upper glass panel moves vertically in guides inside the posts: on the manual model it is raised and lowered by hand, on the motorised model it opens and closes by remote control. With the panel up, the airflow is pushed above seated head height. Units are joined side by side to enclose the area.

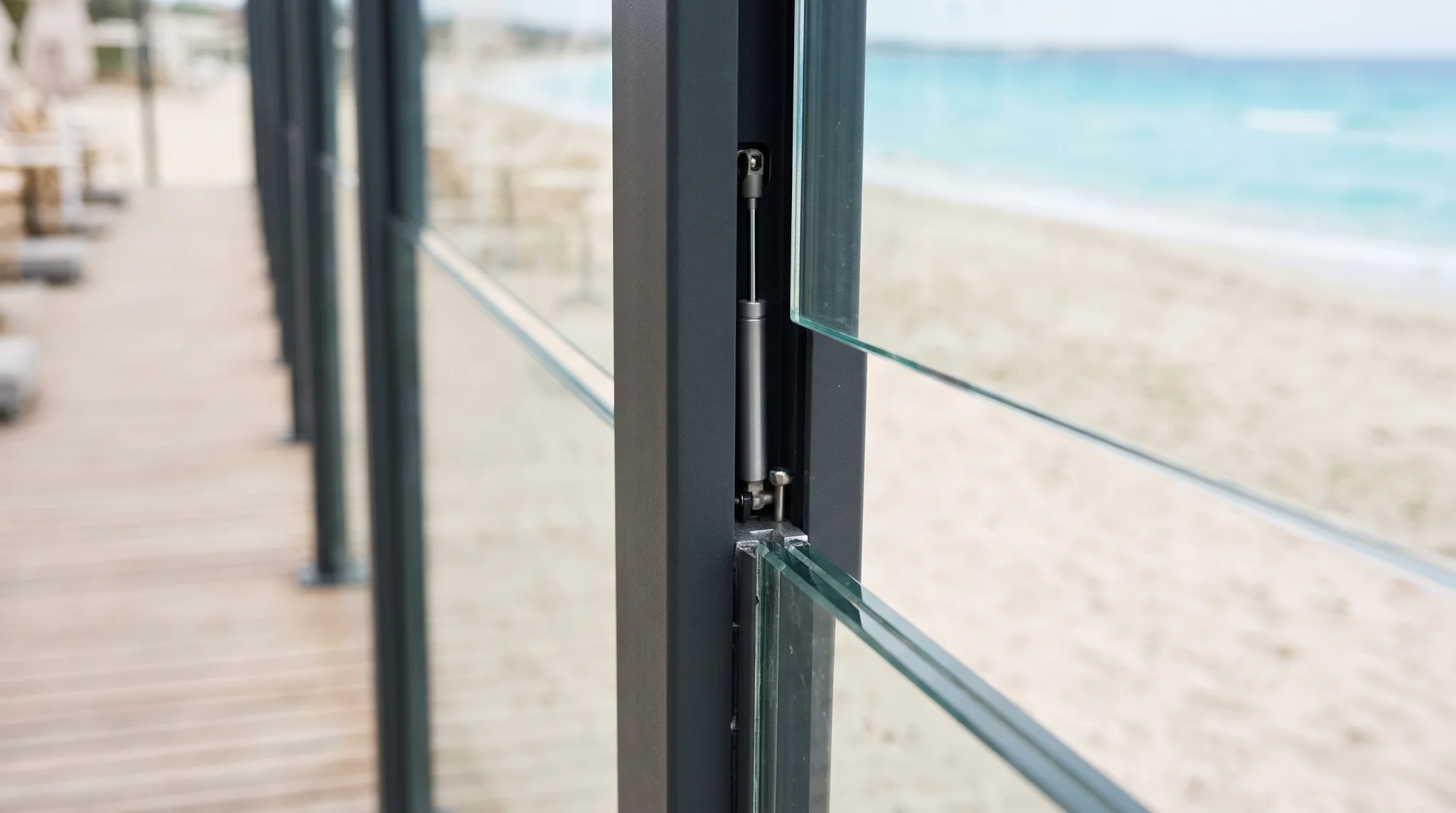

Windbreak unit with vertical post and raised upper glass panel.

Upper glass panel rises and lowers

Manual or motorised with remote control

All units move together on one remote

Built-in planter or floor-fixed base

Which setup suits your space?

See the suitable windbreaker configuration based on how often you operate the glass and your floor setup.

Question 1

How often will you raise and lower the upper glass?

Exact dimensions and whether the planter model needs extra floor fixing are decided on site according to wind exposure.

The matching system will appear here based on your answers.

Parts of one unit

Each unit consists of two vertical posts, a fixed lower pane and a moving upper pane.

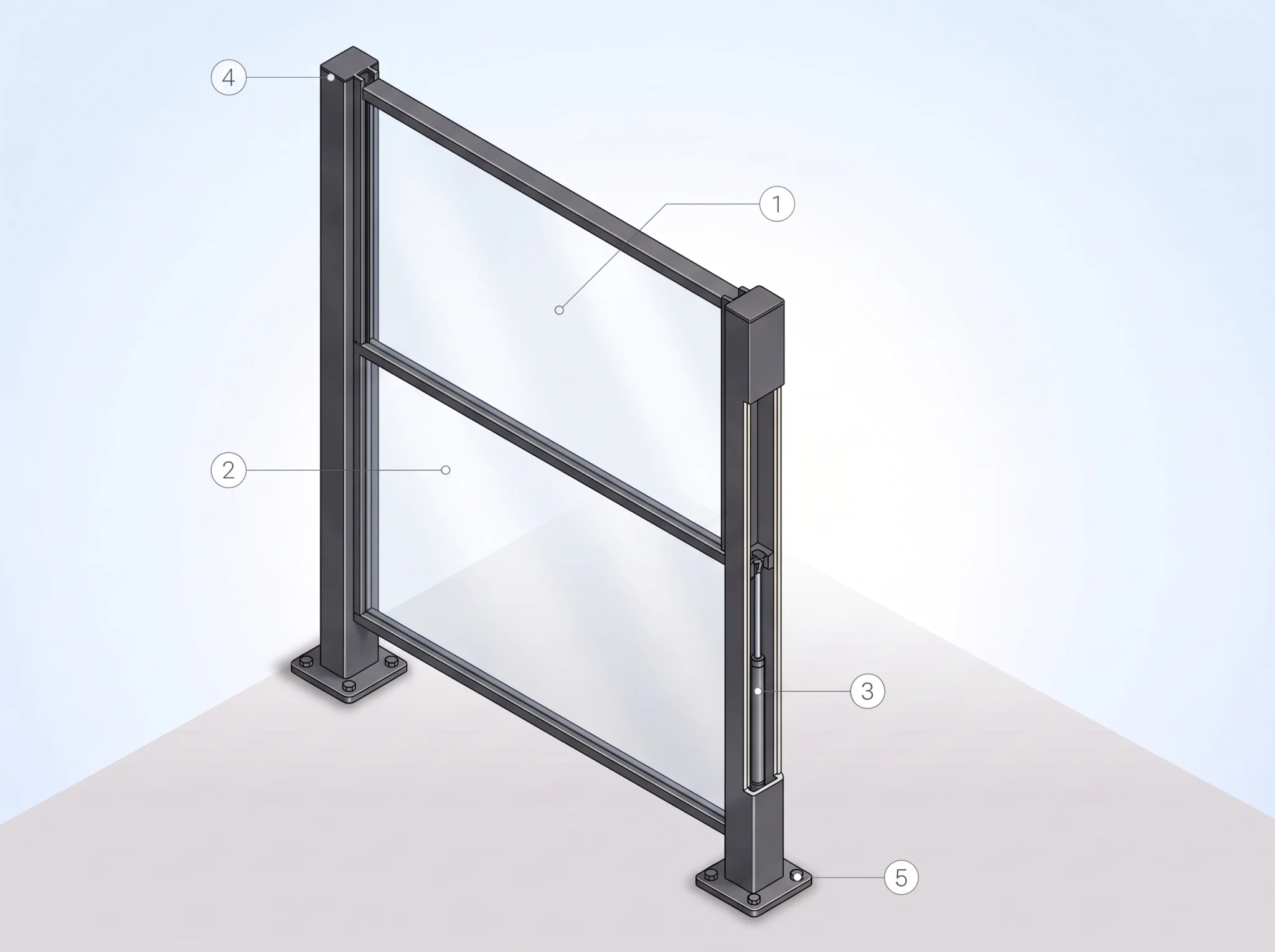

Cross-section diagram: Moving upper pane, Fixed glass pane, Guide channel in the post, Top connection, Floor foot / planter base

1
Moving upper paneSlides up and deflects the wind above seated head height.
2
Fixed glass paneCloses the lower part and keeps the view open.
3
Guide channel in the postKeeps the upper pane running straight between the posts.
4
Top connectionWhere the post meets the upper pane.
5
Floor foot / planter baseOn the model without planter a flanged foot is fixed to the floor; on the planter model the built-in box forms the base.

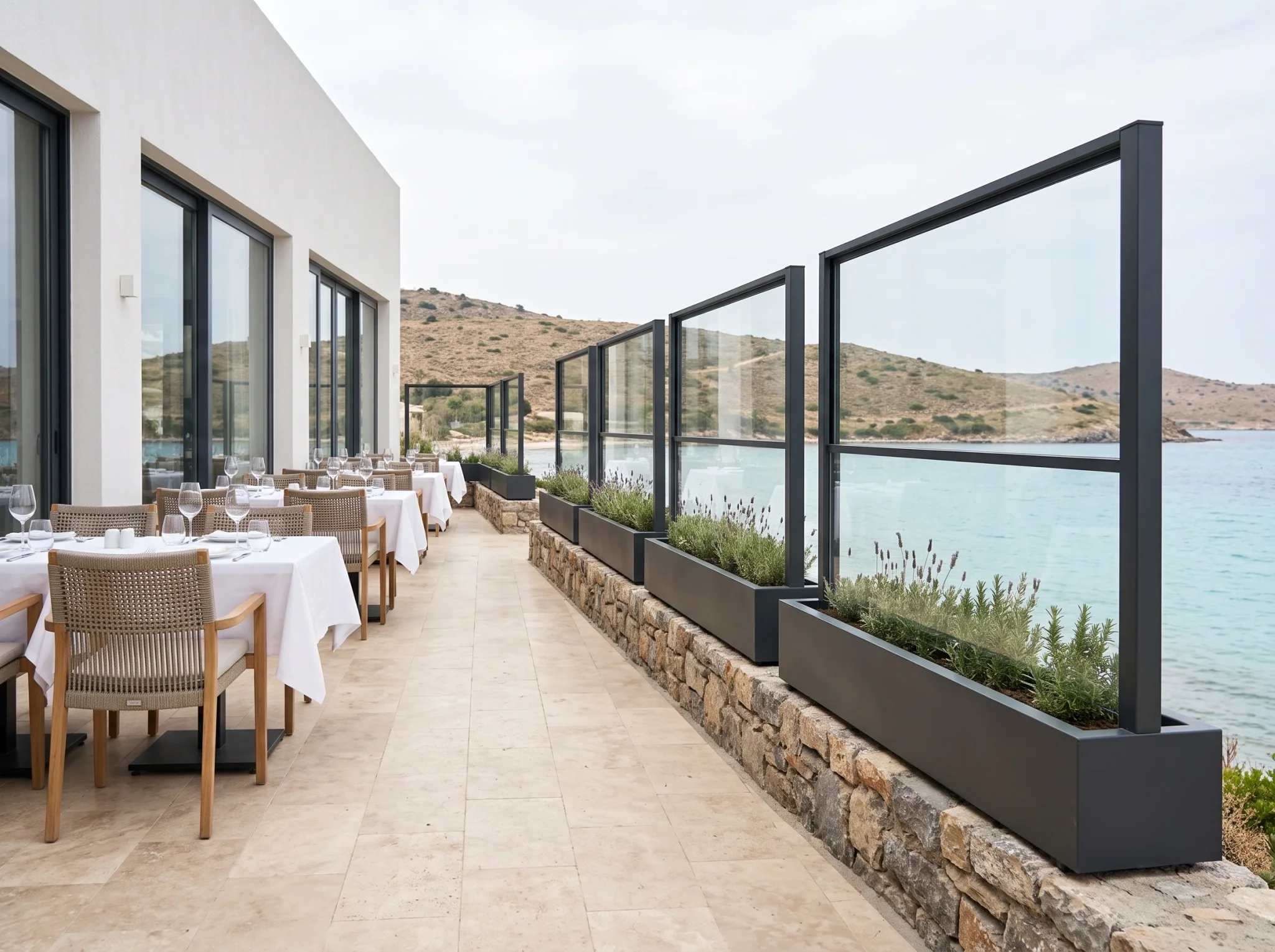

On three different terraces

Motorised

A restaurant terrace with evening wind

When the wind picks up, all units rise from one remote. When it drops, the panes come down and the view opens again.

With planter, manual

Pavement and terrace edge

The planter forms the base and marks the edge of the seating area with plants. Whether extra fixing to the floor is needed is decided on site according to the wind.

Without planter, manual

A seaside villa terrace

On windy days the upper pane is raised by hand, on calm days it is lowered. The model without planter takes up little room.

System options

With planter

A built-in planter forms the base, so greenery marks the edge of the space.

Without planter

Fixed to the floor with mounting feet; the slim design keeps the space uncluttered.

Manual

The upper glass panel is raised and lowered by hand.

Motorised

The upper panel moves quietly by remote control; a multi-channel remote operates every unit at once.

Technical specifications

Base: Built-in planter or floor-fixing foot
Movement: Upper glass panel moves vertically
Operation: Manual or remote-controlled motor
Glass: Clear glass; type and thickness set per project
Posts: Aluminium posts with internal guide channels
Size: Width and height to suit the space; exact size set at the site survey

Accessories Catalogue · PDF

Glass and aluminium since 1940.

We produce at our Glass Factory and Architectural Factory in Adana; one dedicated partner from site survey to installation.

Worker carrying a glass panel at the Başaran factory

Get to know Başaran

About Us

2-year system warranty

Production in Adana, showroom in France.

Glass Factory and Architectural Factory in Seyhan, Adana; showroom and warehouse in Bondoufle.

Frequently asked questions about glass windbreaks

Is the upper pane hard to lift on the manual model?

The upper pane runs in guides inside the posts and is easily raised and lowered by hand. For large areas opened and closed often, the motorised model may suit better.

Can the planter model tip over in strong wind?

Soil in the planter adds ballast, though very exposed spots may still need floor fixing. Wind exposure is assessed during the site survey.

Can a windbreak replace a balustrade?

A windbreak is designed to push the airflow above seated head height. Raised balconies and roof terraces with a drop are subject to separate balustrade regulations, so use in these areas is assessed project by project during the survey.

How is it cleaned and maintained?

Wipe glass and aluminium with a soft cloth and soapy water; avoid abrasive cleaners. Keeping the guide channels in the posts free of leaves, dust and sand keeps the upper pane running smoothly.

What determines the price?

The system chosen, the overall size, manual or motorised operation, colour and finish, the condition of the floor or wall and the installation height all affect the price. The final quote is based on measurements taken on site.
