Tilt Bioclimatic
The louvres rotate in place without retracting; the compact profile gives small spaces a clean, simple roof.
How it works
The louvres rotate on fixed axes and do not retract. Change the angle to let the sun straight in or to block it. When closing, a linear actuator presses the flat louvres firmly shut; EPDM seals keep the rain out and water drains through the posts.
Slim frame, clean look
Flat louvres, high-pressure closing
Suited to small spaces
Optional polyurethane-filled louvres
Set the day with the louvre angle
The louvres rotate in place. Knowing what each angle does is half of using the remote well.

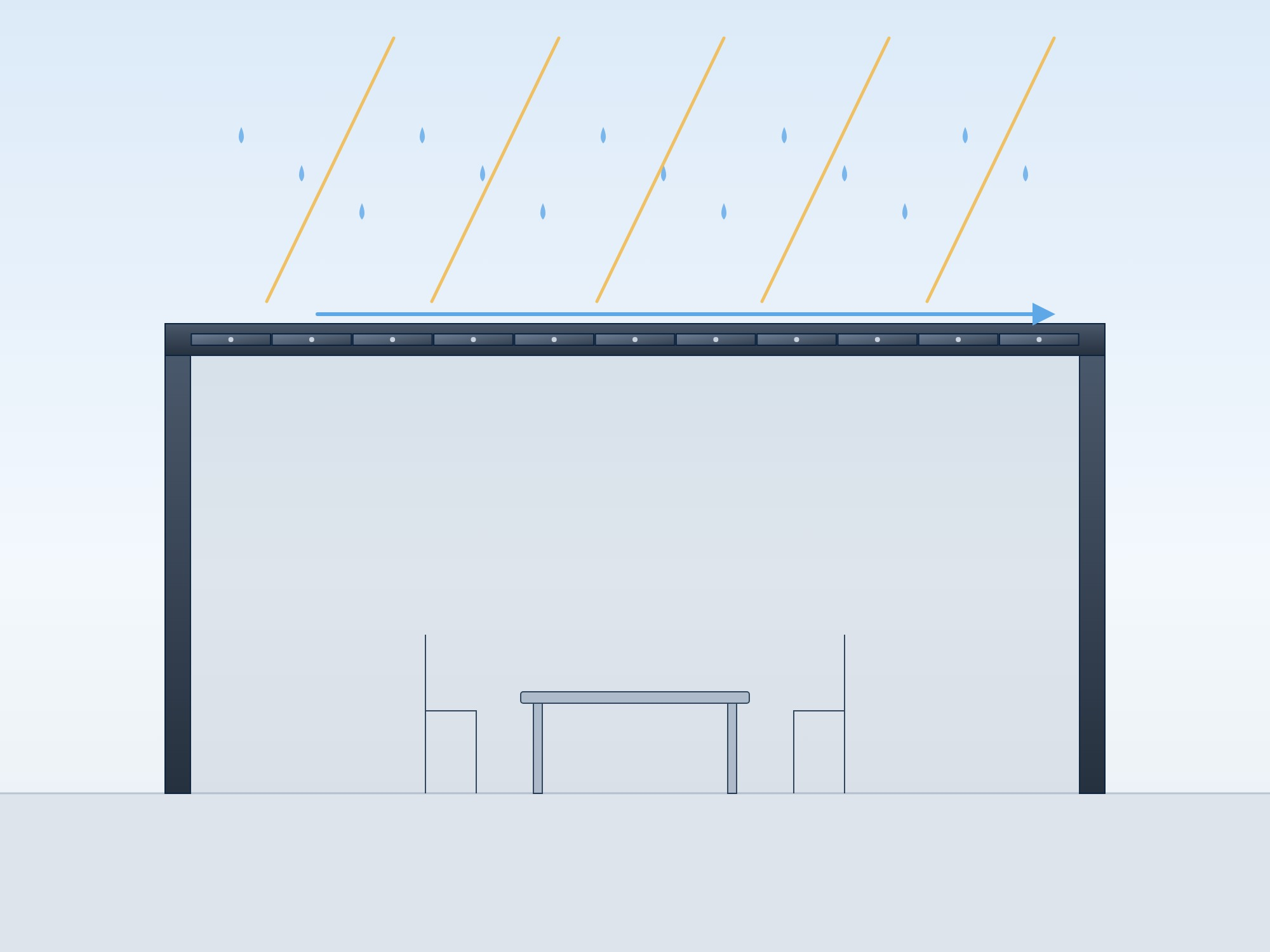

The flat louvres close tightly. Rain and sun stay outside; water runs into the gutter.
Is the tilt model enough for you?
Question 1Would it bother you that the louvres stay visible overhead even when upright?
If you are unsure, we compare both models for your space at the site survey.
The matching system will appear here based on your answers.
Use and care
System options
Control, lighting and mounting options are confirmed per project at the site survey.
Technical specifications
- Material
- Extruded, powder-coated aluminium
- Louvre movement
- Rotate only
- Louvre angle
- From closed to open, adjustable
- Fully open
- No stack; the louvres stand upright in place
- Drive
- Linear actuator, high-pressure closing
- Drainage
- Integrated gutter, drains through the posts
- Mounting
- Freestanding, façade-leaning, wall-mounted
- Control
- Remote, Wi-Fi, building automation
Glass and aluminium since 1940.
We produce at our Glass Factory and Architectural Factory in Adana; one dedicated partner from site survey to installation.
2-year system warranty
Production in Adana, showroom in France.
Glass Factory and Architectural Factory in Seyhan, Adana; showroom and warehouse in Bondoufle.
Frequently asked questions about tilt bioclimatic roofs
With the louvres closed, the seals keep water out; rain on the louvres runs into the perimeter gutters and down through the posts to the ground. In very heavy downpours, or if leaves block the gutters, they can overflow. If you open the louvres right after the rain, a few remaining drops may fall inside.
A closed roof keeps the rain off and extends the season, but a bioclimatic roof is not an insulated room. Closing the sides with glass systems or zip screens and adding a heater makes a clear difference in winter. If you want to use the space as a room, a winter garden is the better choice.
On most systems the louvres are opened in strong wind to reduce the load on the roof. The louvres should not be moved when iced up, and opening them before expected snow is generally recommended. Rain and wind sensor options are assessed per project at the site survey, together with local wind and snow conditions.
Total area, the model, the number of modules and posts, the mounting type, frame colour, lighting and control options, and any side enclosures. The final price is based on measurements taken on site.
Powder-coated aluminium needs no repainting, but the system is not maintenance-free. Gutters and leaf guards should be cleaned at least twice a year, especially after autumn. Wipe louvres and profiles with water, a neutral cleaner and a soft cloth; avoid abrasive products.
